kenora Project
Overview

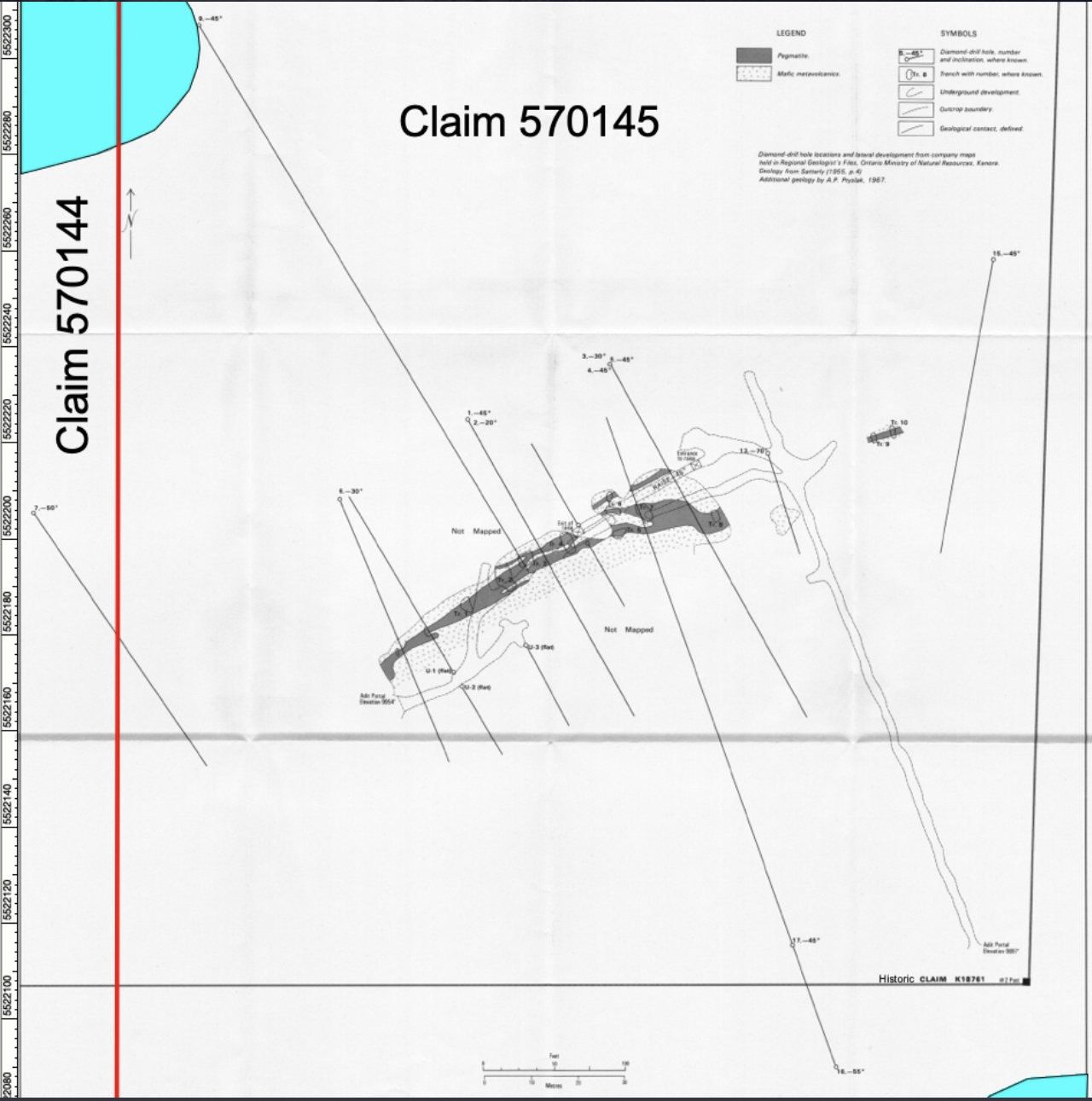

Richard Lake Mine Workings on Madison’s Claim 570145.
kenora Project
Key Drill Results
- 15.75 m of 129 ppm U₃O₈ at Nixon Lake in hole NL08-02
- 29.40 m of 135 ppm U₃O₈ at Nixon Lake in hole NL08-03
- 10.50 m of 146 ppm U₃O₈ at Bee Lake in hole BL08-16
- 16.00 m of 135 ppm U₃O₈ at Richard Lake in hole RL08-20
- 15.50 m of 264 ppm U₃O₈ at Ely Lake in hole EL08-01 (Delta annual report 2009) Pin-pointing target areas from completed 2021 field work to commence 2022 drill program

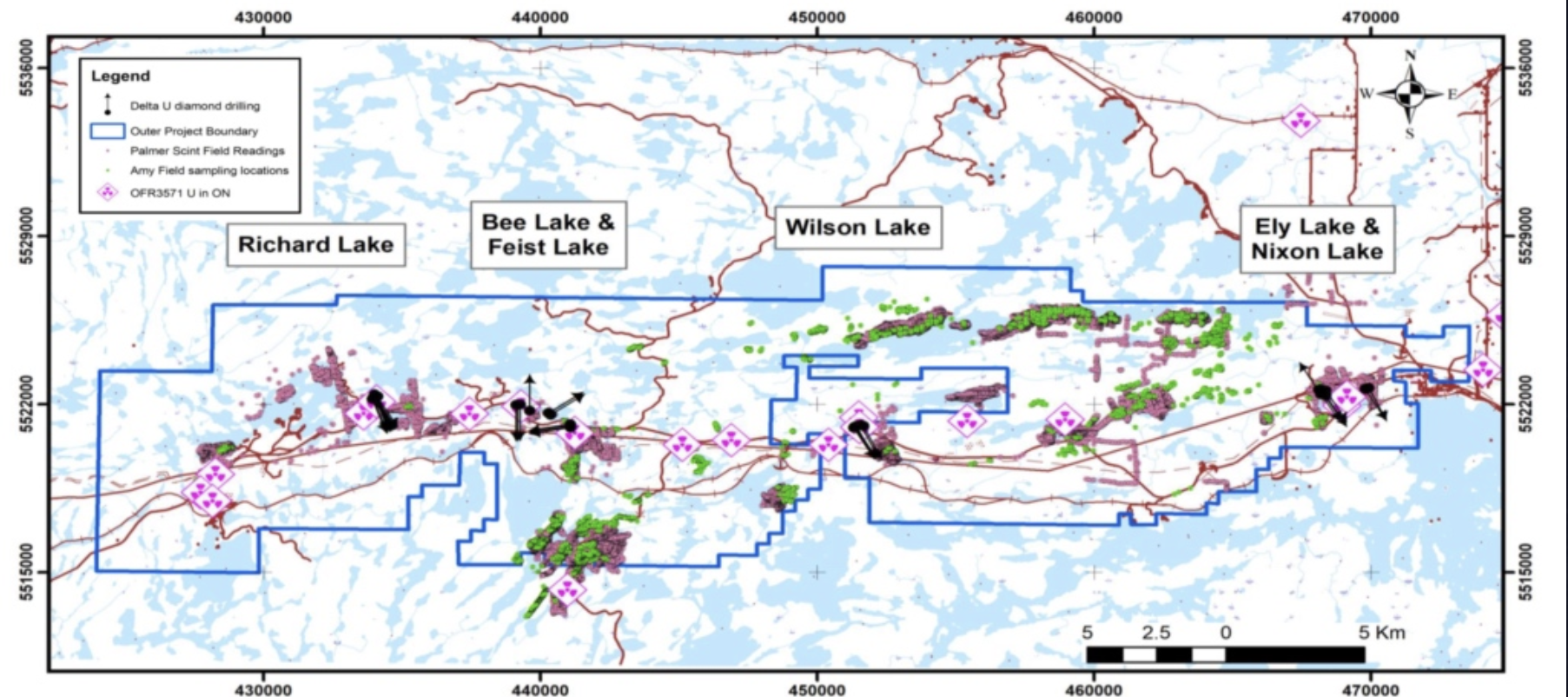

49.3km long covering 39,850 hectares. Outline of the Kenora U Property (excluding the inliers of blue) coordinates in NAD83 Zone 15. Airborne radiometric imagery of Uranium Concentration.

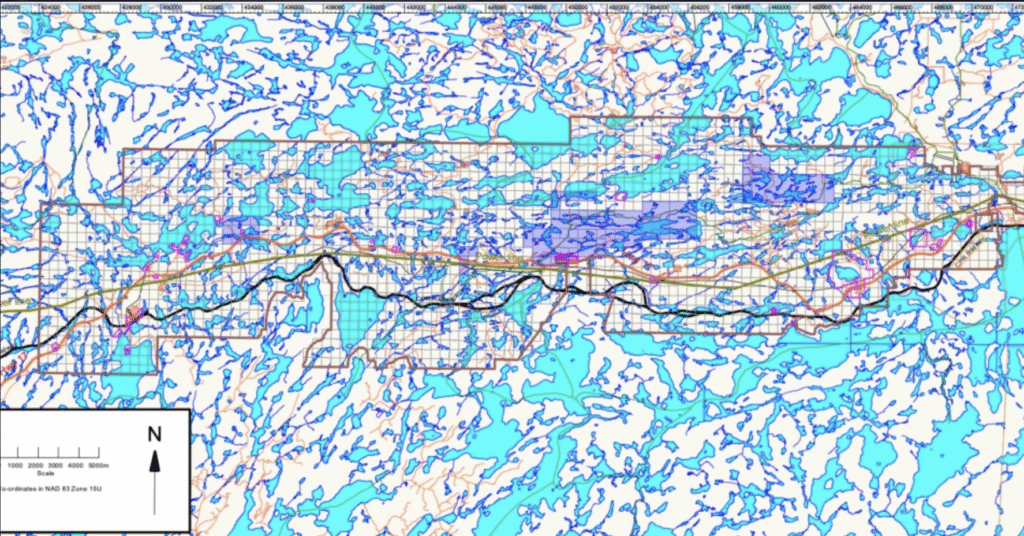

Site access showing claim fabric, lakes, and access. Note the purple-blue areas within the bounds of the claim block perimeter are held by other parties.

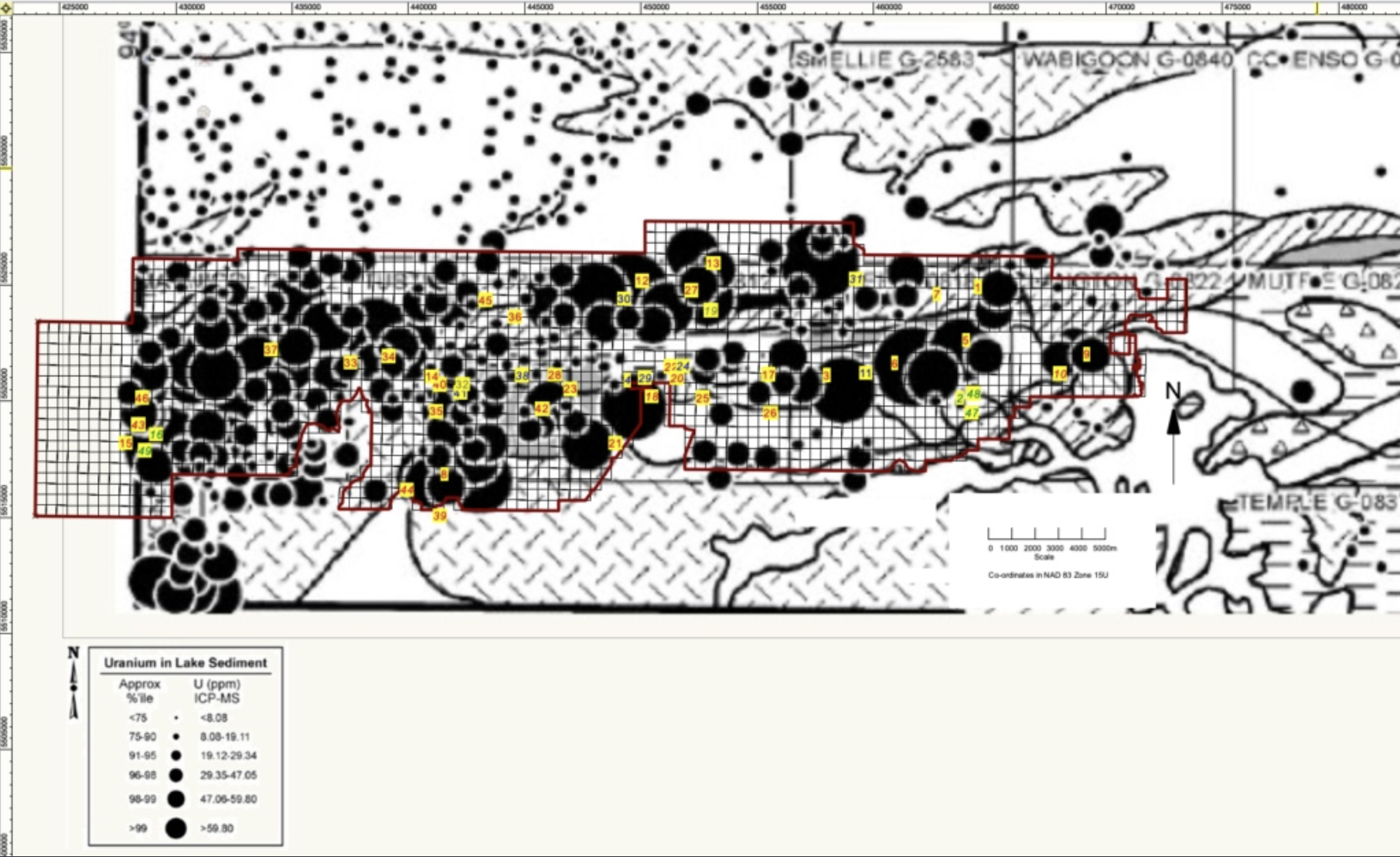

Plotted results of the lake sediment study for uranium. Information from: Felix, V. E. 2005, Eagle Lake Area High Density Regional Lake Sediment and Water Geochemical Survey, North-Western Ontario, Ontario Geological Survey Open File Report 6104.
National Instrument 43-101 Disclosure
The technical information on this web page has been reviewed and approved by Joe Campbell who is a Qualified Persons in accordance with the Canadian regulatory requirements set out in NI 43-101. Readers are cautioned that some of the technical information described on this web page is historical in nature; however, the historical information is deemed credible and was produced by professional geologists/geoscientists in the years discussed.
